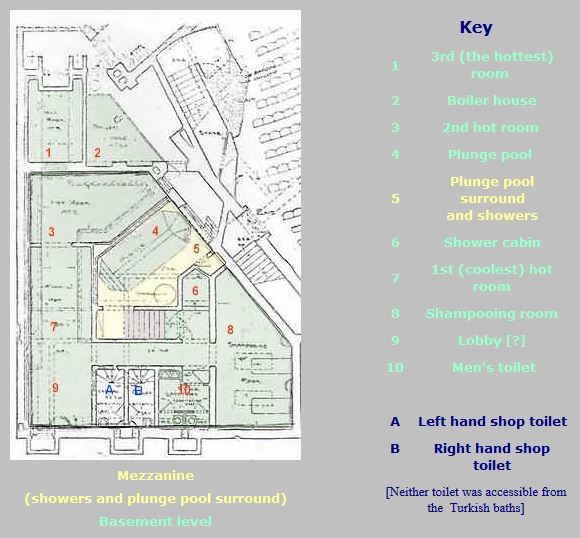

The Turkish bath at the Wimbledon Theatre:

plan of lower two floors


Plan of two lower floors

Mezzanine

(showers and plunge pool surround)

Basement level


Key

1

3rd (the hottest) room

2

Boiler house

3

2nd hot room

4

Plunge pool

5

Plunge pool surround
and showers

6

Shower cabin

7

1st (coolest) hot room

8

Shampooing room

9

Lobby [?]

10

 Men's toilet





A

Left hand shop toilet

B

Right hand shop toilet

[Neither toilet was accessible from the  Turkish baths]

To plan of upper floors



This page enlarges an image or adds to the information found on the following page:

Wimbledon Theatre Turkish Baths. Part 3: Lower levels conversion
